MAGNETIC DOOR COUNTER V3.0-LR

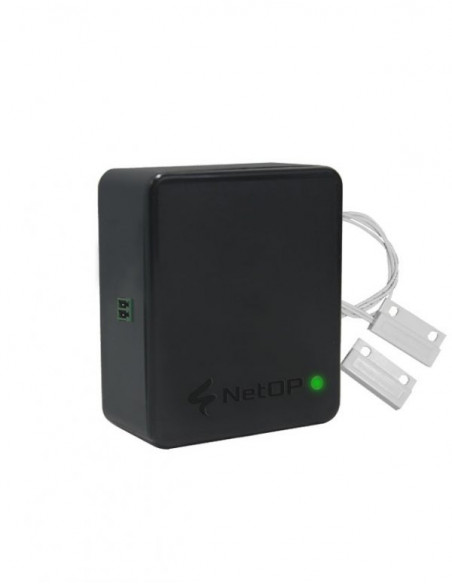

NETOP Magnetic Door Counter sensor is a long range wireless sensor which counts door opening-closing by using magnetic add-on. Each opening and closing is detected and recorded in the system separately. It gives 2 outputs, which one of them is how many times the door was opened and the other one is how many times it was closed, in every hour(default). This sensor is compatible with LoRaWAN technology. The standard version of this sensor is powered by one replaceable 3.6 V AA sized battery (included with purchase).

Paper Type

₦12.90

Tax excluded

PRODUCT DESCRIPTIONS
NETOP Magnetic Door Counter sensor is a long-range wireless sensor that counts door opening-closing by using the magnetic add-on. Each opening and closing is detected and recorded in the system separately. It gives 2 outputs, one of them is how many times the door was opened and the other one is how many times it was closed, in every hour(default). This sensor is compatible with LoRaWAN technology. The standard version of this sensor is powered by one replaceable 3.6 V AA-sized battery (included with purchase).
KEY FEATURES
•Real plug & play • Easy to mount & install • Compatible with LoRaWAN™ specification • Maintenance-free – install & forget • Secure communication (AES-128) • Ultra-Low Power Consumption • Certifications: LoRaWAN™, CE • +10 years of battery life (*30 minutes data transmit period)
COMMUNICATION SPECIFICATIONS
• Compatible with LoRaWAN Specification 1.0.3 • The sensor uses Low Power Wide Area Network-LPWAN technology (LoRa) for connectivity • Compliant with Low and High Frequencies (AS923, AU915, CN470, CN779, EU433, EU868, IN865, KR920, RU864, US915 MHz ISM bands) • Supports High power and Low power LoRa RF applications: – Up to +22 dBm at US915 and AU915, – Up to +14 dBm elsewhere • Ultra-low power consumption. Excellent long-term stability • 170 dB maximum link budget • Radio Performance: High RX sensitivity down to -148 dBm • Full ADR, OTAA and ABP support • Long-range wireless data transmission
MECHANICAL CHARACTERISTICS
Housing	ABS

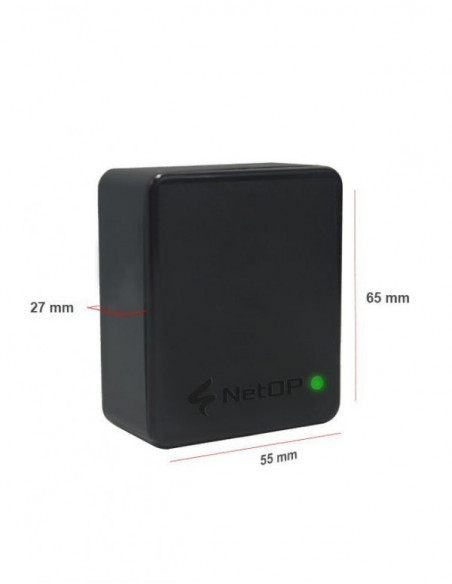

Dimensions	65 x 55 x 27 mm
Operating Temperature	-40°C to +85°C
SENSOR SPESIFICATIONS
Operation Time	1 s(max)
Output	Total door opening and total door closing within the period
Data Transmission Period	1 hour(default)
Data Security	AES-128
Power Supply	AA Battery 3.6 V Li-SOCl2-Saft LS 14500 (Standard 1 piece)
Indicators	RGB Status LED (onboard)
CERTIFICATIONS & RELIABILITY
• LoRaWAN™ Certified • CE
APPLICATIONS
• Door opening-closing counter applications • Door counting for supermarket toilet cleaning • Any other related open-close counting application
