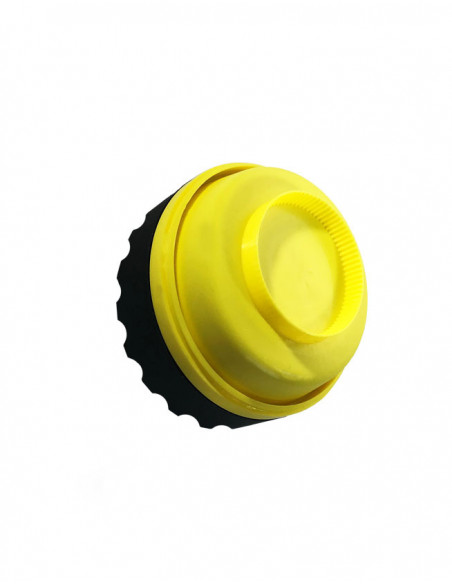

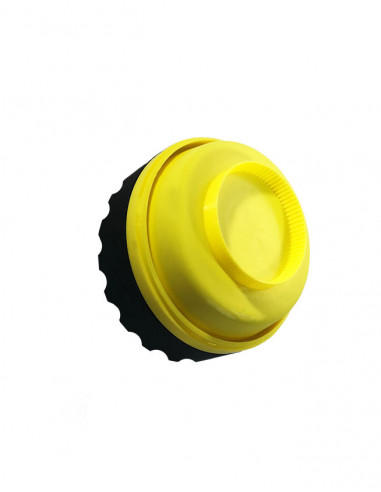

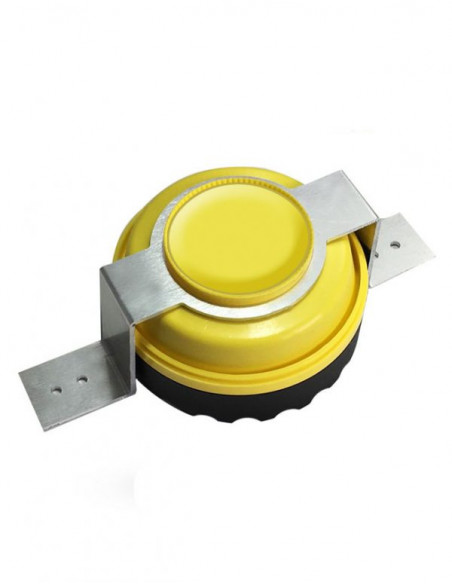

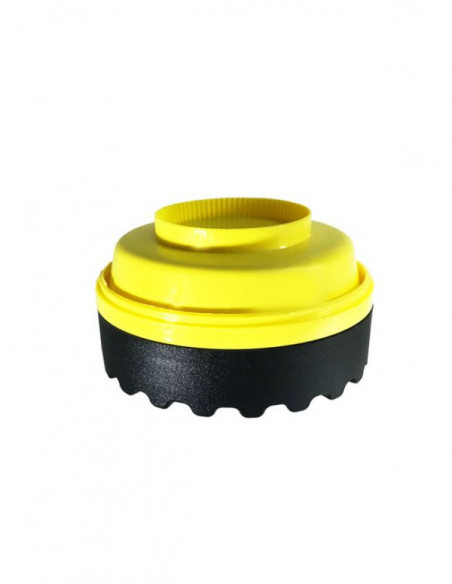

MANHOLE SENSOR V3.0-LR
NETOP Manhole sensor is a long range wireless sensor which can be used for Manhole opened/closed application that provide manhole cover’s status information. This sensor is compatible with LoRaWAN technology. The standard version of this sensor is powered by one replaceable 3.6 V AA sized battery (included with purchase).
Product customization
Don't forget to save your customization to be able to add to cart| PRODUCT DESCRIPTIONS | |||
|---|---|---|---|
|
NETOP Manhole sensor is a long-range wireless sensor that can be used for Manhole opened/closed application that provides manhole cover’s status information. This sensor is compatible with LoRaWAN technology. The standard version of this sensor is powered by one replaceable 3.6 V AA-sized battery (included with purchase). |
|||
| KEY FEATURES | |||
| •Real plug & play • Easy to mount & install • Compatible with LoRaWAN™ specification • Maintenance-free – install & forget • Secure communication (AES-128) • Ultra-Low Power Consumption • Certifications: LoRaWAN™, CE • +10 years of battery life (*30 minutes data transmit period) |
|||
| COMMUNICATION SPECIFICATIONS | |||
| • Compatible with LoRaWAN Specification 1.0.3 • The sensor uses Low Power Wide Area Network-LPWAN technology (LoRa) for connectivity • Compliant with Low and High Frequencies (AS923, AU915, CN470, CN779, EU433, EU868, IN865, KR920, RU864, US915 MHz ISM bands) • Supports High power and Low power LoRa RF applications: – Up to +22 dBm at US915 and AU915, – Up to +14 dBm elsewhere • Ultra-low power consumption. Excellent long-term stability • 170 dB maximum link budget • Radio Performance: High RX sensitivity down to -148 dBm • Full ADR, OTAA and ABP support • Long-range wireless data transmission |
|||
| MECHANICAL CHARACTERISTICS | |||
| Housing | ABS | ||

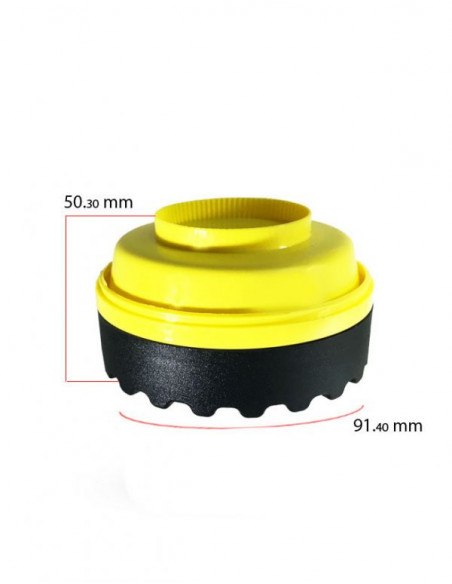

| Dimensions | 90 x 55 mm | ||
| Operating Temperature | -40°C to +85°C | ||
| SENSOR SPESIFICATIONS | |||
| Output | Open or close | ||
| Data Transmission Period | Every detection | ||
| Data Security | AES-128 | ||
| Power Supply | AA Battery 3.6 V Li-SOCl2-Saft LS 14500 (Standard 1 piece) | ||
| Indicators | RGB Status LED (onboard) | ||
| CERTIFICATIONS & RELIABILITY | |||
| • LoRaWAN™ Certified • CE |
|||
| APPLICATIONS | |||
| • Manhole Applications | |||
