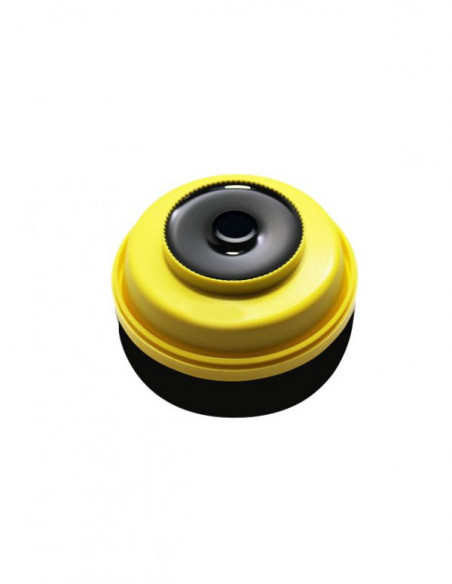

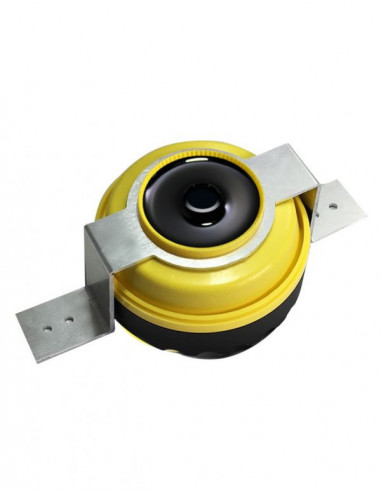

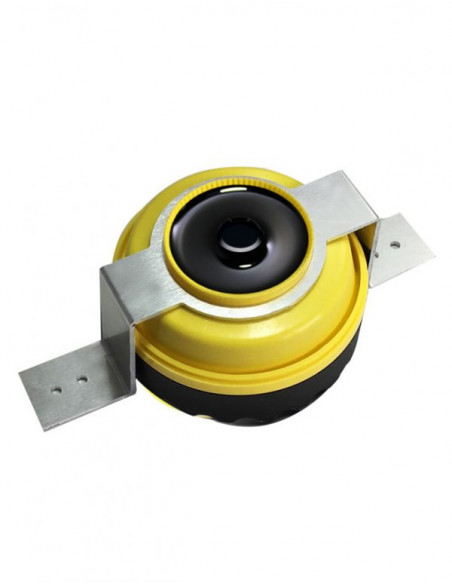

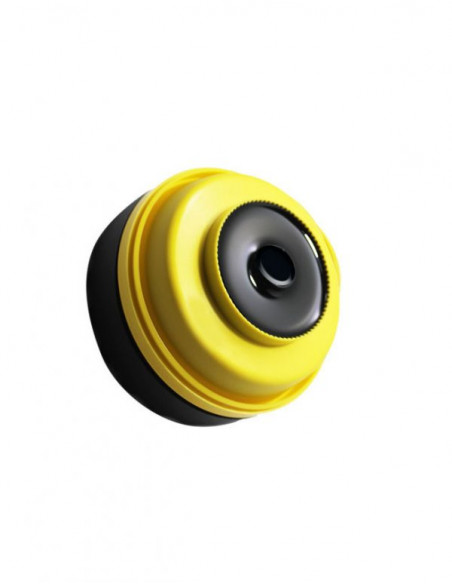

WASTE BIN SENSOR-BLE
NETOP Waste Bin sensor is a long range wireless sensor which can be used for monitoring waste container’s fill level of waste bin/container.
| PRODUCT DESCRIPTIONS | |||
|---|---|---|---|
|
Please remember that this device uses Bluetooth5.0 technology via Bluetooth Low Energy (BLE) advertisement by using nRF52832 chipset. So, it is compatible with any Bluetooth Gateway or Bluetooth mobile application. To collect this device’s data, you can use any generic Bluetooth Gateway(s) or Bluetooth advertisement listener mobile application such as “nRF Connect”. NETOP Waste Bin sensor is a long-range wireless sensor that can be used for monitoring waste container’s fill level of waste bin/container by using a highly optimized ultrasonic sensor. It enables optimization in the route planning for waste collection and provides improved container management. This sensor is fully compatible with BLE5.0 technology. The standard version of this sensor is powered by one replaceable 3.6 V AA sized battery (included with purchase) |
|||
| KEY FEATURES | |||
| • Real plug & play • Easy to mount & install • Maintenance-free – install & forget • Secure communication • Low Power Consumption • Longer Range • Certifications: CE |
|||
| COMMUNICATION SPECIFICATIONS | |||
| • The sensor uses Bluetooth5.0 technology • Compliant with unlicensed 2.4 GHz ISM band • Internal Antenna • Radio Performance: Upto +4 dBm TX power and -96 dBm RX sensitivity • No PC required for operation |
|||
| MECHANICAL CHARACTERISTICS | |||
| Housing | ABS | ||

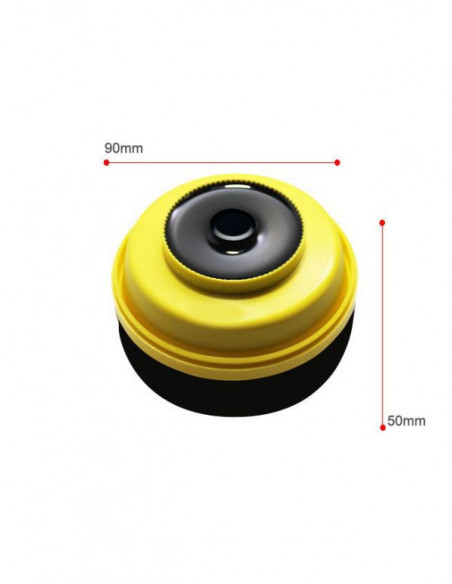

| Dimensions | 90 x 50 mm | ||
| Operating Temperature | -40°C to +85°C | ||
| SENSOR SPECIFICATIONS | |||
| Detection range | Up to 2000 mm | ||
| Accuracy | ± 10 mm | ||
| Data Transmission Period | 4 hours (default) | ||
| Battery Life | +10 years | ||
| Power Supply | AA Battery 3.6 V Li-SOCl2-Saft LS 14500 (Standard 3 piece) | ||
| Indicators | RGB Status LED (onboard) | ||
| CERTIFICATIONS & RELIABILITY | |||
| • CE • Bluetooth® SIG certified • EN 62479 • EN 60950 • EN 301 489-1 • EN 301 489-17 • EN 300 328 |
|||
| APPLICATIONS | |||
| • Waste Bin level monitoring applications | |||
| DOWNLOADS | |||
 SN-BLE-Waste_Bin_Sensor_V2.1 |
|||
| VIDEOS | |||
| N/A | |||
| ADDITIONAL NOTES | |||
| [1] In some cases, product images may differ from the actual products. [2] Customs duties, import, export expenses that may occur would be paid by the customer. [ Read : Shipping Policy ] | |||
