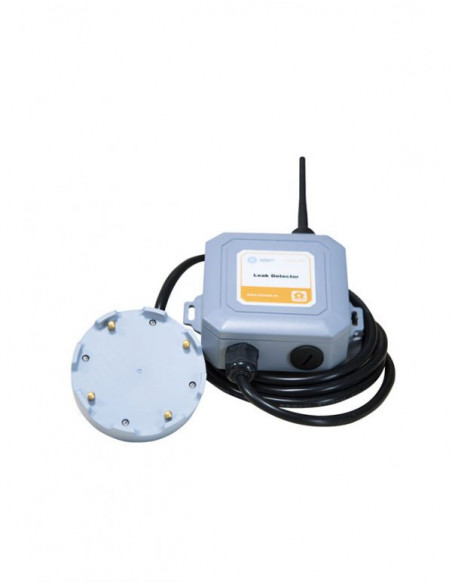

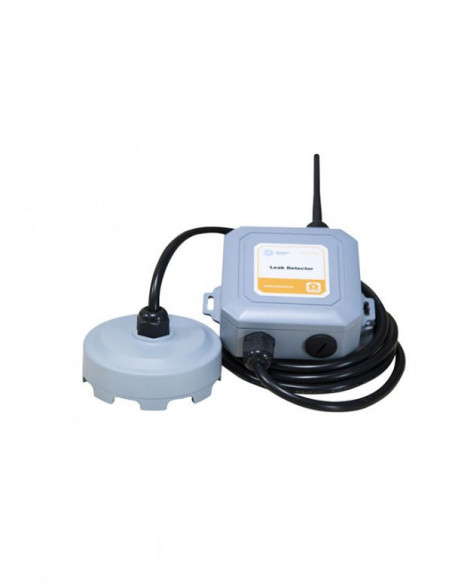

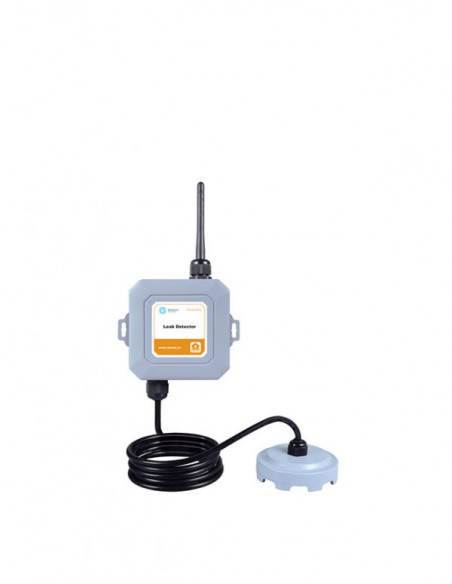

WATER LEAK DETECTOR

This is a wireless water leakage detector complied with LoRaWAN protocol. It equips with 4 probes. Normally, the device probes are insulated by air.

Dimension

₦29.00

Tax excluded

PRODUCT DESCRIPTIONS

This is a wireless water leakage detector complied with LoRaWAN protocol. It equips with 4 probes. Normally, the device probes are insulated by air. Under the condition of water immersion the probes will conduct automatically. That will trigger an alarm. The external omni-directional antenna transmits and receives wireless signals well and improves the communication distance. Low power consumption, built-in large capacity battery and integrated design make it a longer operation life.

KEY FEATURES

• Support LoRaWAN^TM
• Short response time
• Built-in 19000mAh battery, with lifespan over 2 years
• IP67 waterproof

SPECIFICATIONS

Output Alert	Constant on/off
Alarm Trigger	Contact of any 2 probes
Data Transmission Rate	300bps-5.4kbps
Frequency	CN470-510MHz EU863-870MHz US902-928MHz AS923MHz AU915-928MHz
Max Tx power	19dBm
Rx Sensibility	-140dBm(SF=12)
Temperature	0℃-80℃
Humidity	10%-95% (no condensing)
Power Supply	Built-in battery
Battery Capacity	3.6 V/19000mAH
Supply	DC 3.3V
Sleeping Current	≤10uA
Working Current	≤130mA
Waterproof Grade	IP66
Dimension	Data gathering box: 110mm110mm45mm (antenna excluded)
Dimension	Water Leak Sensor: 108mm*Φ32mm(cable excluded)

APPLICATIONS

• Communications base station, machine room, library, exhibition hall, museum etc.
