COLD CHAIN SENSOR

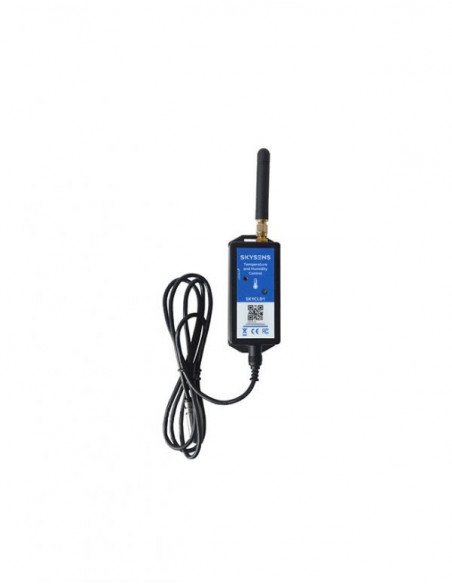

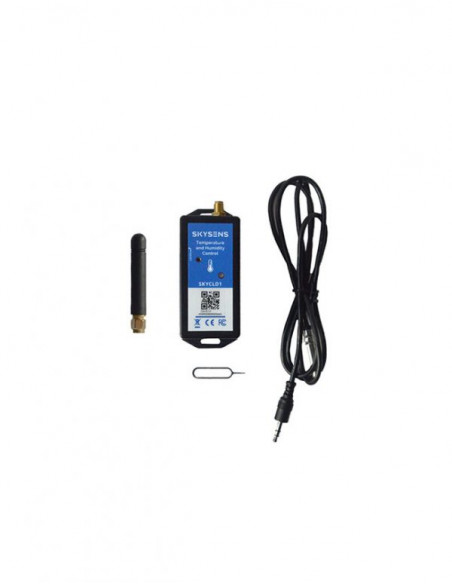

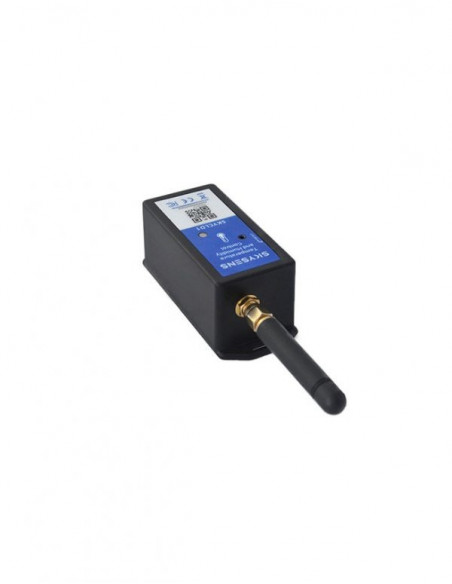

The Cold Chain Sensor is a LoRaWAN based, cold chain monitoring device which can measure temperature (internal and external) and humidity of the environment.
| PRODUCT DESCRIPTIONS | |||
|---|---|---|---|
|
The Cold Chain Sensor is a LoRaWAN based, easy to use and cost-effective cold chain monitoring device which can measure temperature (internal and external) and humidity of the environment. It is a cost-effective, easy-to-use temperature and humidity monitoring device designed for variable application in different areas. |
|||
| FEATURES | |||
| • 12 bits thermometer between -55ºC and +125ºC • Precise humidity and temperature measurement • Excellent long-term stability. • LED interface • Easy attachment with accessories • Low power consumption compared with other technologies • Up to 10 years of battery life • Excellent long-term stability • Adjustable sensor reading interval from network • Ready with end-to-end software application • 2 mode restart pin button • Optional IP65 casing • Suitable for both indoor & outdoor usage • Changeable AA battery • External waterproof temperature probe with different • Cable options |
|||
| SPECIFICATIONS | |||
| Dimensions | 35 x 85 x 33 mm | ||
| Weight | 120 gr (apprx) | ||
| Casing | ABS with RoHS Compliancy | ||
| Antenna | +1,5 dBi or +3 dBi external | ||
| Battery | 3.6V Lithium AA | ||
| Expected Battery Life | min 5 years with 30 min interval | ||
| Available Frequencies | All | ||
| Temperature Sensitivity | 0.5 C between -10 and +85 C | ||
| Humidity Sensitivity | 1% RH between 20% and 80% | ||
| Operating Conditions | -40ºC to +80ºC & 0% RH to 100% RH | ||
| CERTIFICATIONS & RELIABILITY | |||
| NA | |||
| APPLICATIONS | |||
| • Restaurants, warehouses, supply chains, hospitals, industries, production lines , etc. | |||
